商品の詳細:
|
| 設計温度: | 顧客のニーズに基づいています | ヘッドタイプ: | スチールタンクシリンダーシェルが転がった |
|---|---|---|---|
| テクニクス: | 偽造 | 証明書: | ISO9001、PED、等。 |
| スタンダード: | ASME,PED,TUV など | 容器の頭の直径: | 顧客の要件に応じて |
| パッケージ: | 木製のケース、パレットなど | 設計圧力: | 顧客のニーズに基づいています |

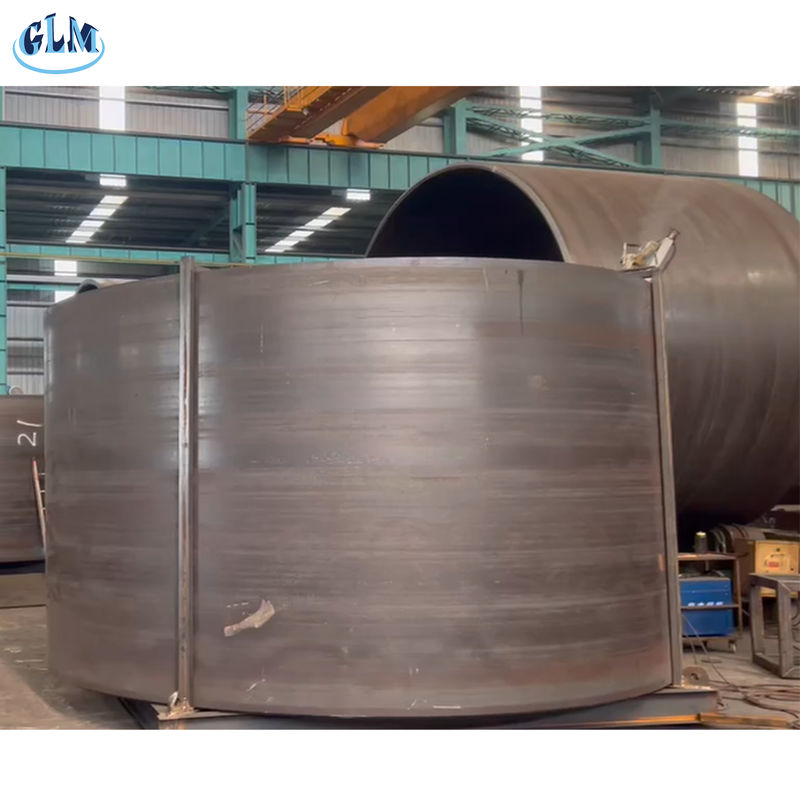

Forming process: Metal plates (e.g., carbon steel, stainless steel) are shaped into a cylindrical structure using mechanical rolling (cold rolling for thin plates ≤12mm, hot rolling for thick plates ＞12mm). The rolling ensures uniform curvature to avoid local deformation.
Dimensional precision: Inner/outer diameter, wall thickness, and straightness meet industry standards (e.g., GB 150, ASME BPVC), with typical diameter tolerances of ±1‰ to ensure compatibility with dish heads (e.g., elliptical heads) at both ends.
High pressure-bearing capacity: The cylindrical shape evenly distributes internal/external pressure (lower stress concentration than rectangular structures), suitable for low-to-high pressure scenarios (0.1MPa–10MPa).
| Technics | Forged |
| Package | Wooden Case, Pallet, Etc. |
| Application | Boiler, Heat Exchanger, Power, Etc. |
| Vessel Head Thickness | According To Customer Requirements |
| Product Name | Steel Tank Cylinder Shell Rolled, Heavy Thick Tight Steel Rolling |
| Certificate | ISO9001, PED, Etc. |
| Grade | Carbon Steel, Aluminum, Stainless Steel SA240 316/316L |
| Forming method | Hot Forming, Cold Forming |
| Vessel Head Diameter | According To Customer Requirements |
| Head Type | Steel Tank Cylinder Shell Rolled |
The following industries benefit from our products and services:
Q: What is the brand name of the Pressure Vessel Dished Head product?
A: The brand name is GLM.
Q: What is the model number of the Pressure Vessel Dished Head product?
A: The model number is Cap.
Q: Where is the Pressure Vessel Dished Head product manufactured?
A: The product is manufactured in China.
Q: What certifications do the Pressure Vessel Dished Head product have?
A: The product is certified with ASME U, U3, U2, PED, ABS, TUV, NB, and ISO.
Q: What is the minimum order quantity for the Pressure Vessel Dished Head product?
A: The minimum order quantity is 1.
